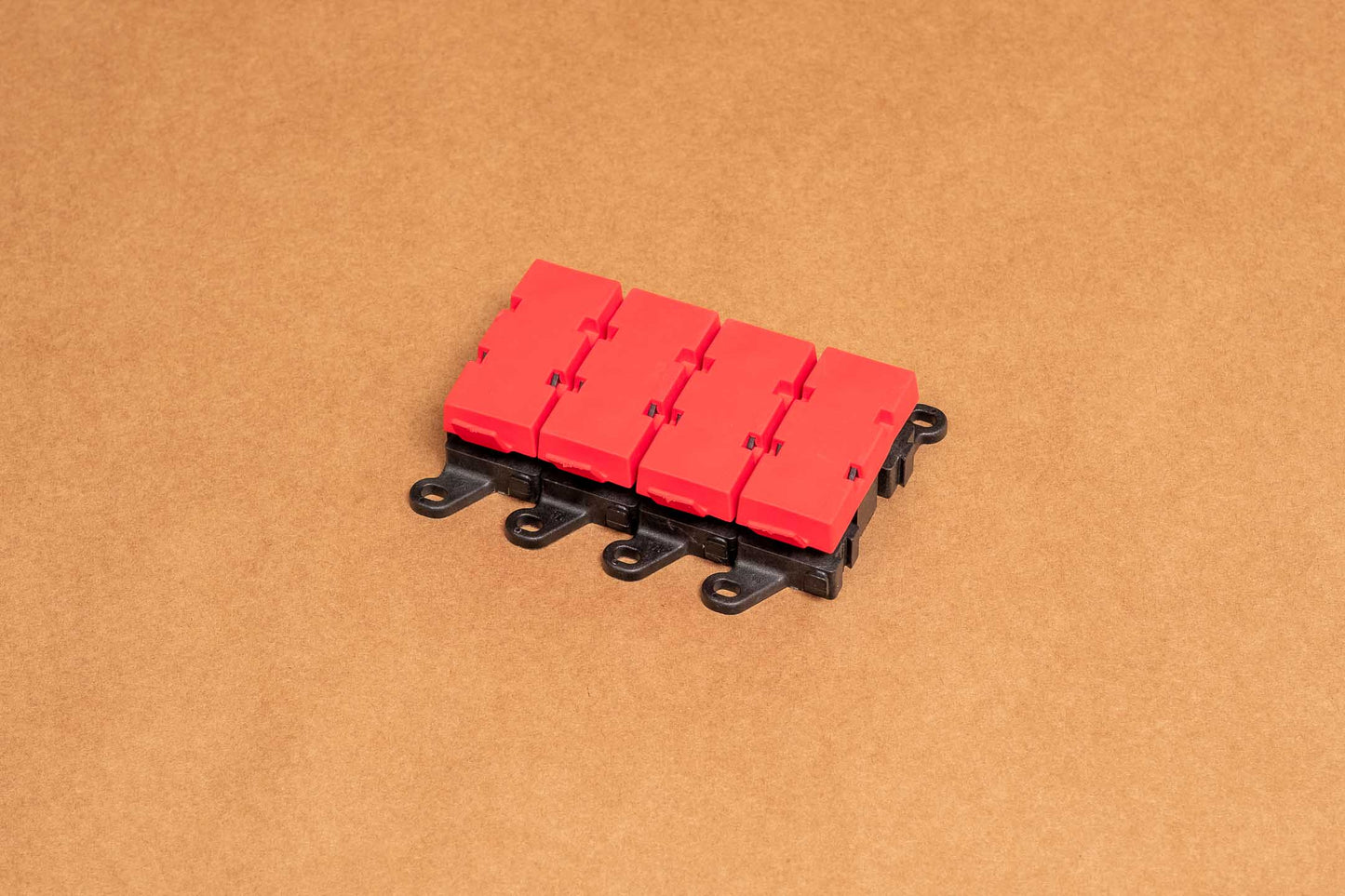

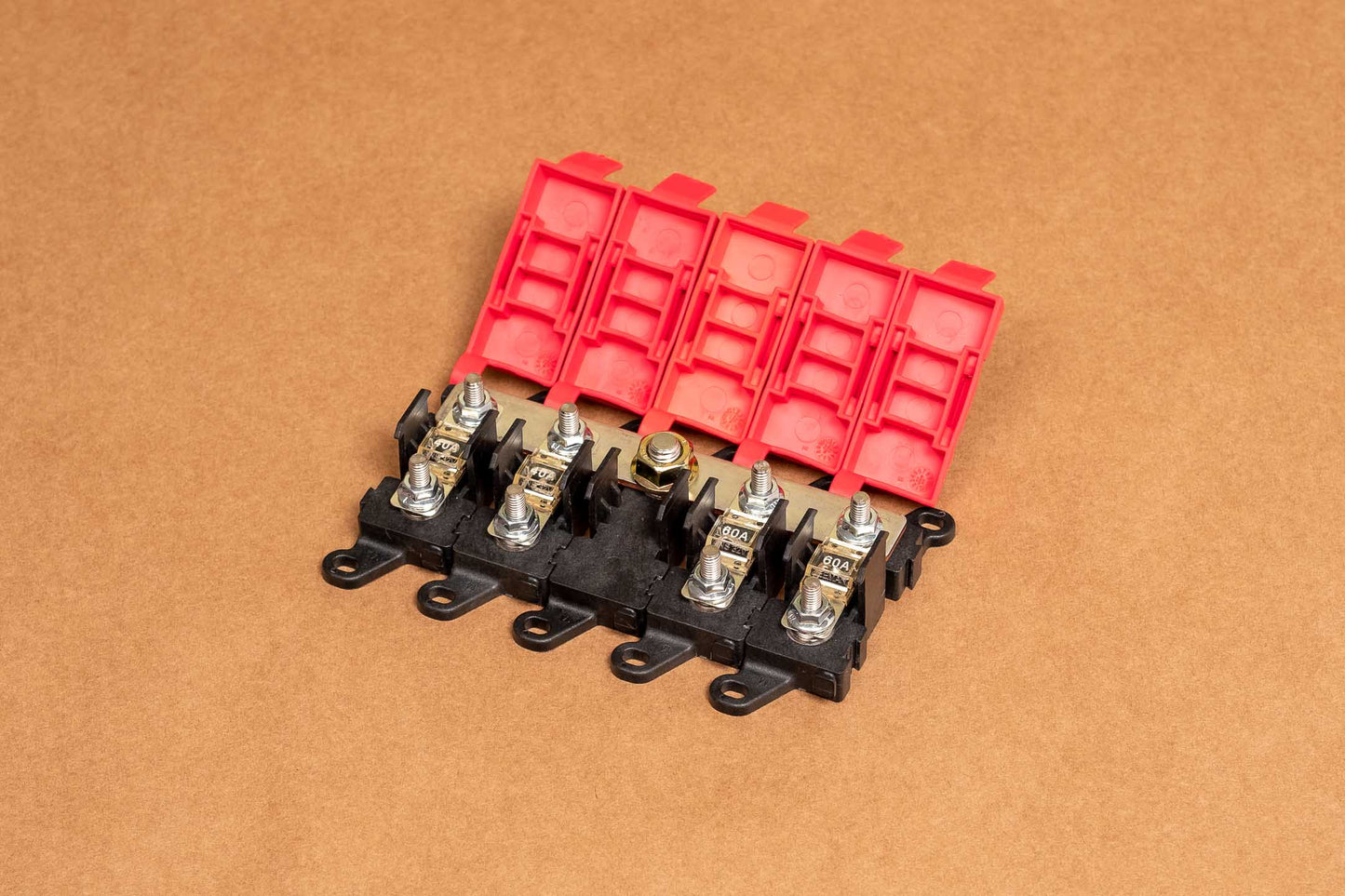

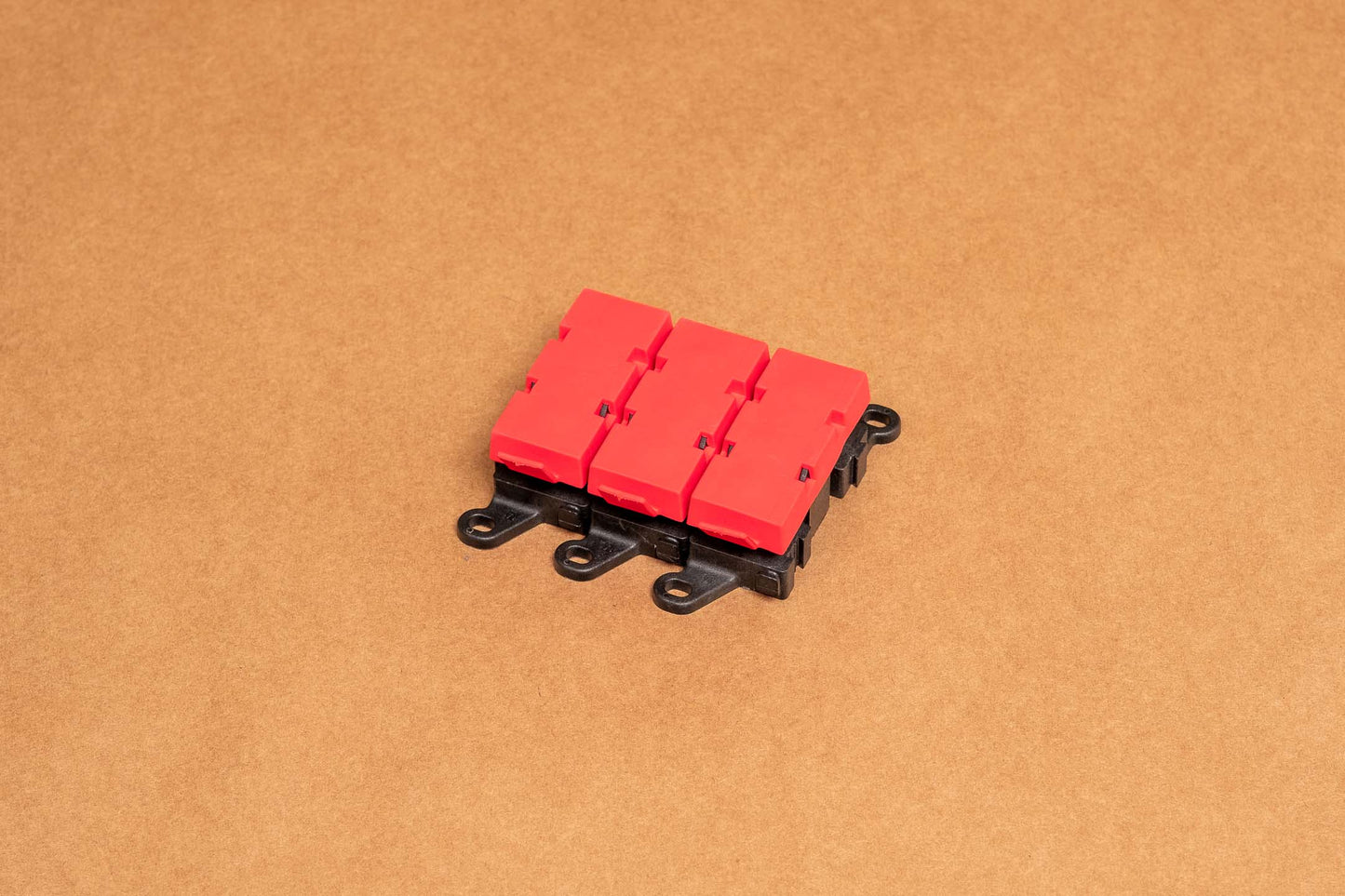

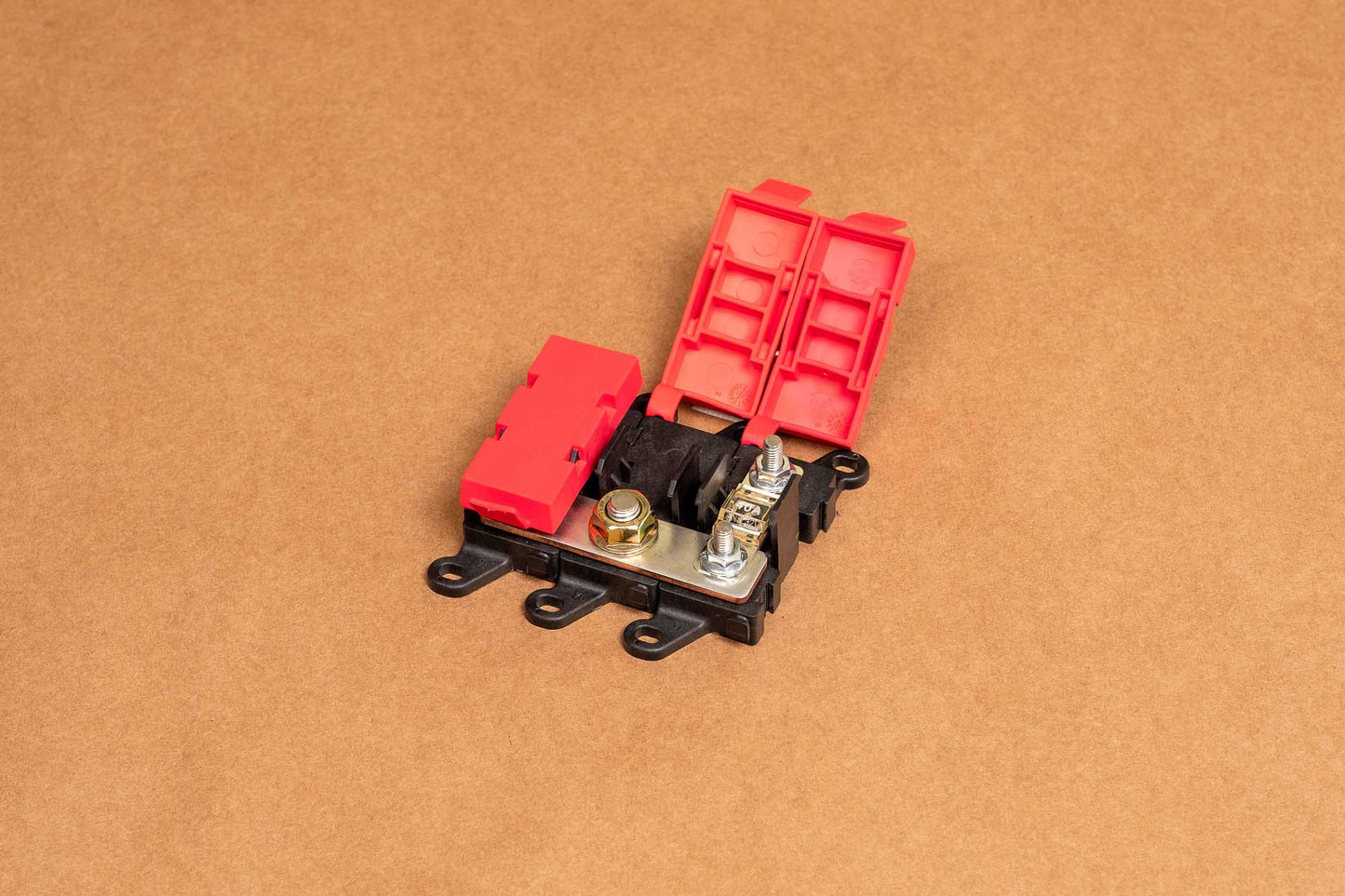

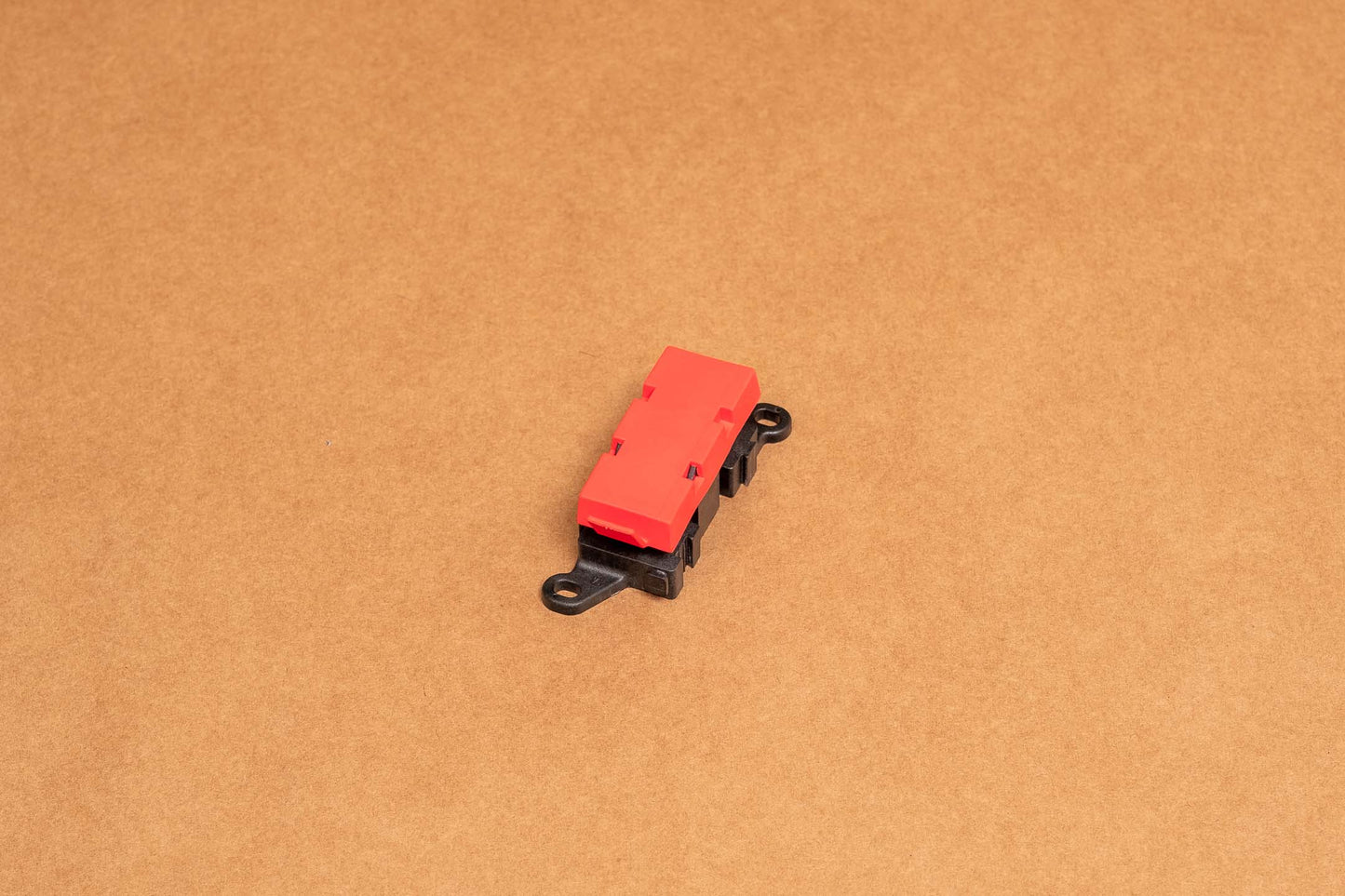

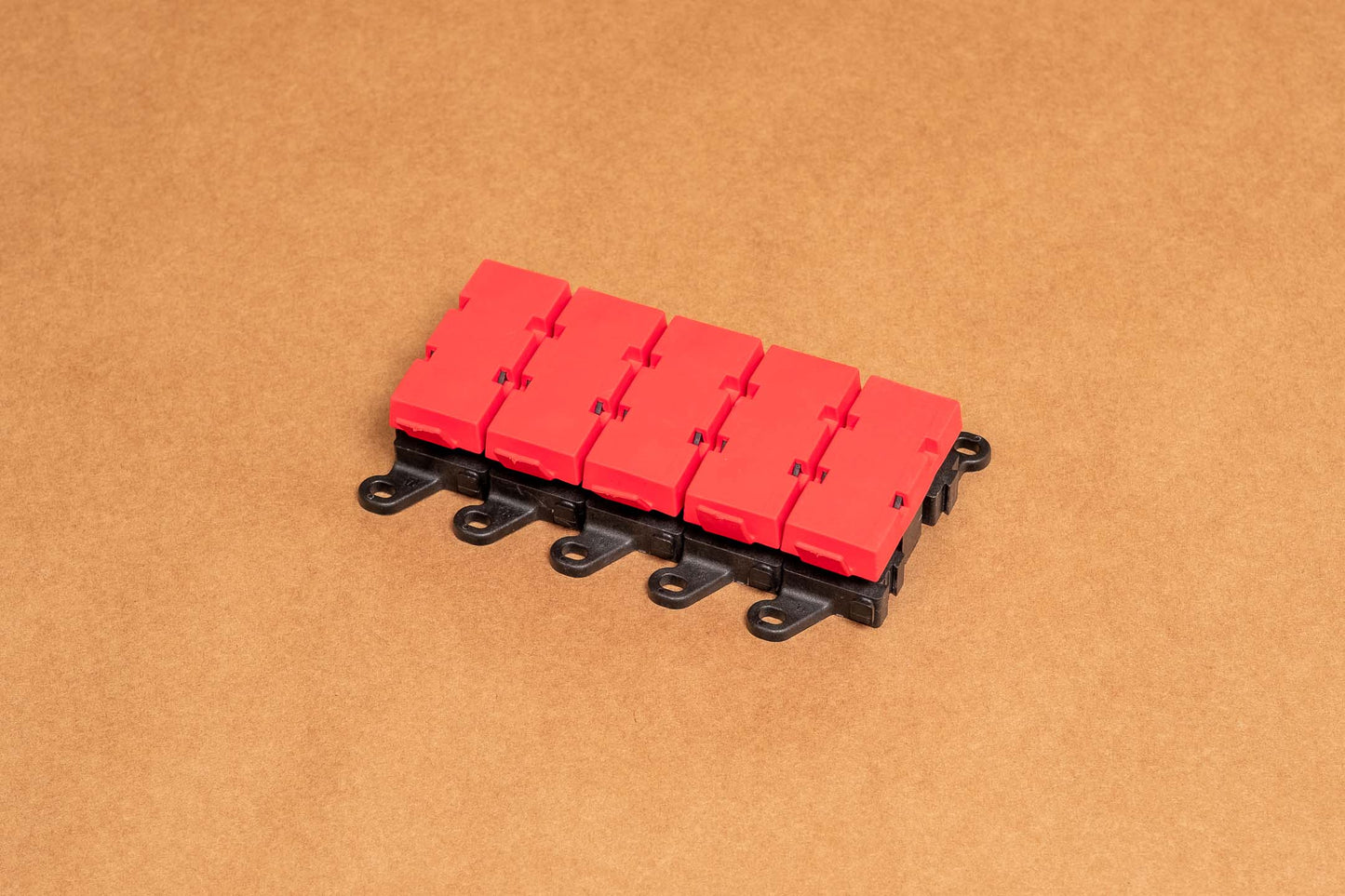

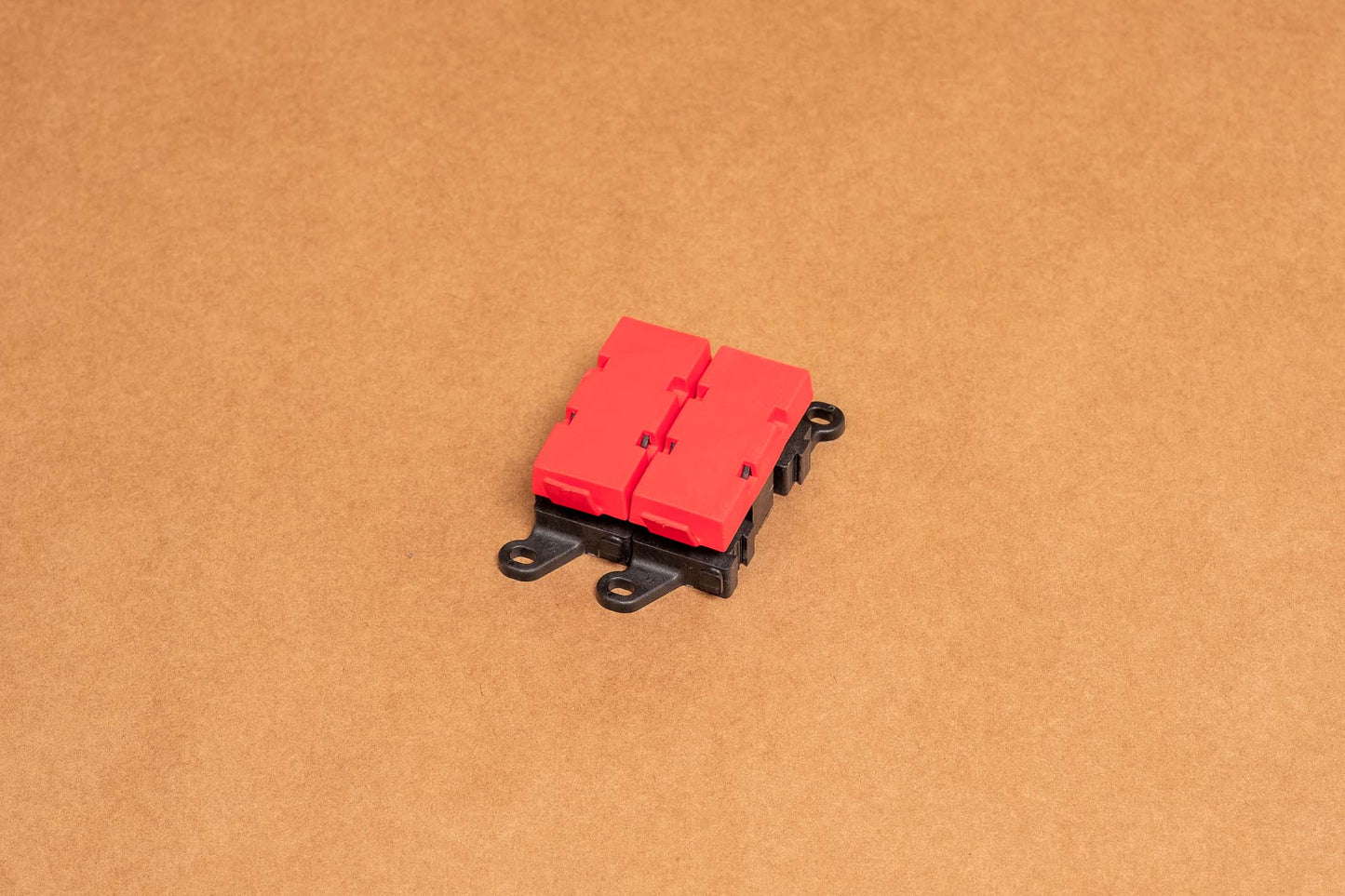

Bussman's LMI (Configurative AMI fuse holder system) can be used for main branch or primary fusing and accepts multiple (up to 6) industry-standard AMI (MIDI) fuses. Sold as 3 and 4 position assemblies, the LMI uses a common input busbar for assemblies of two or more fuse - MIDI fuses up to 300A. Ideal for medium/heavy gauge cables requiring high current protection.
Product Features: - Heavy-duty construction - Stainless steel M6/M8 posts - Uses standard MIDI/AMI fuses - Weatherproof protective Santoprene cover + thermoplastic housing - Interconnecting lugs on side of each fuse block for secure multiple block configurations.

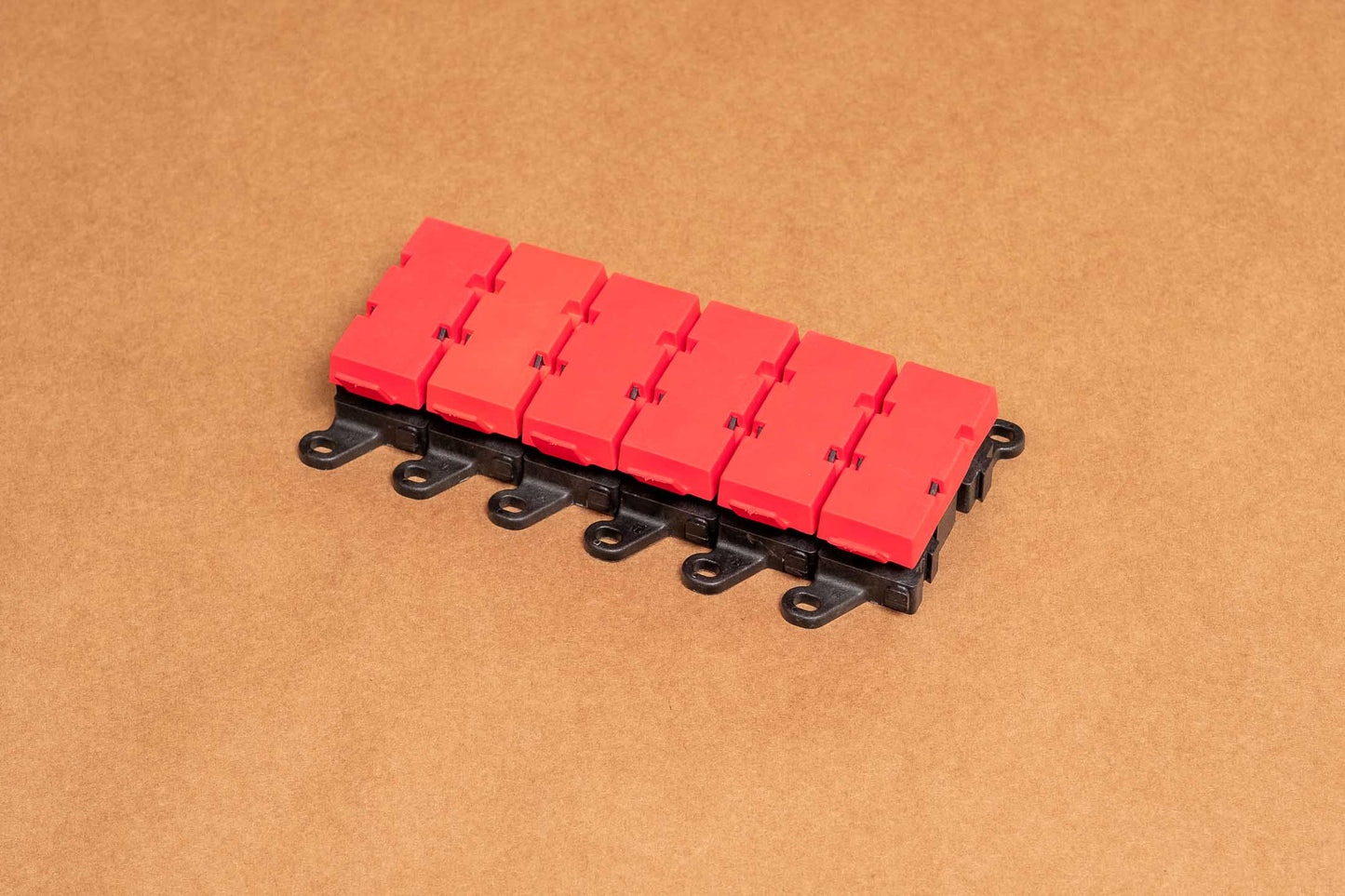

Note: The largest possible LMI assembly that can be created is 7 modules total; 6 fuse modules and one input module, with a maximum total combined rating of 400A continuous.

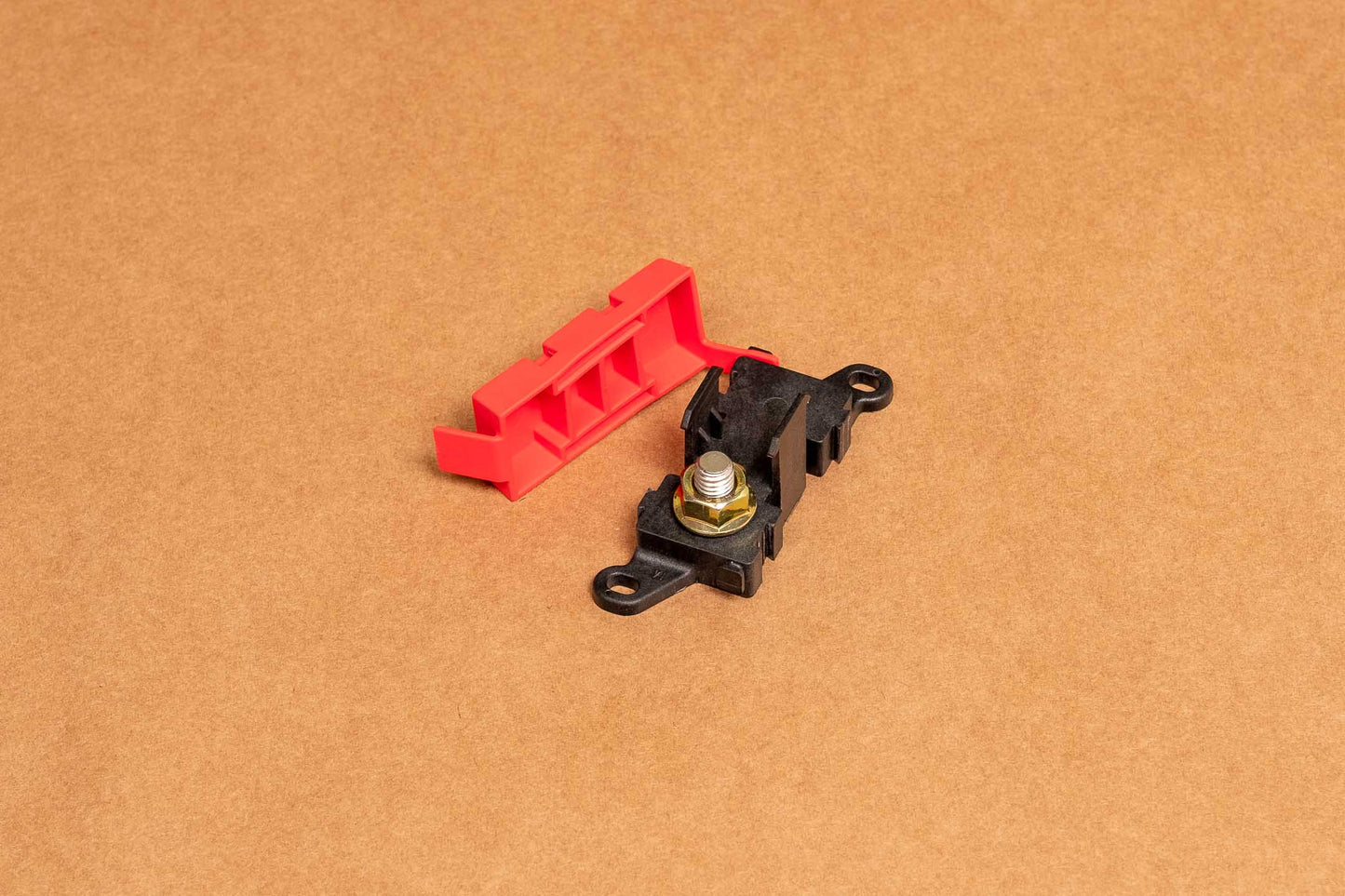

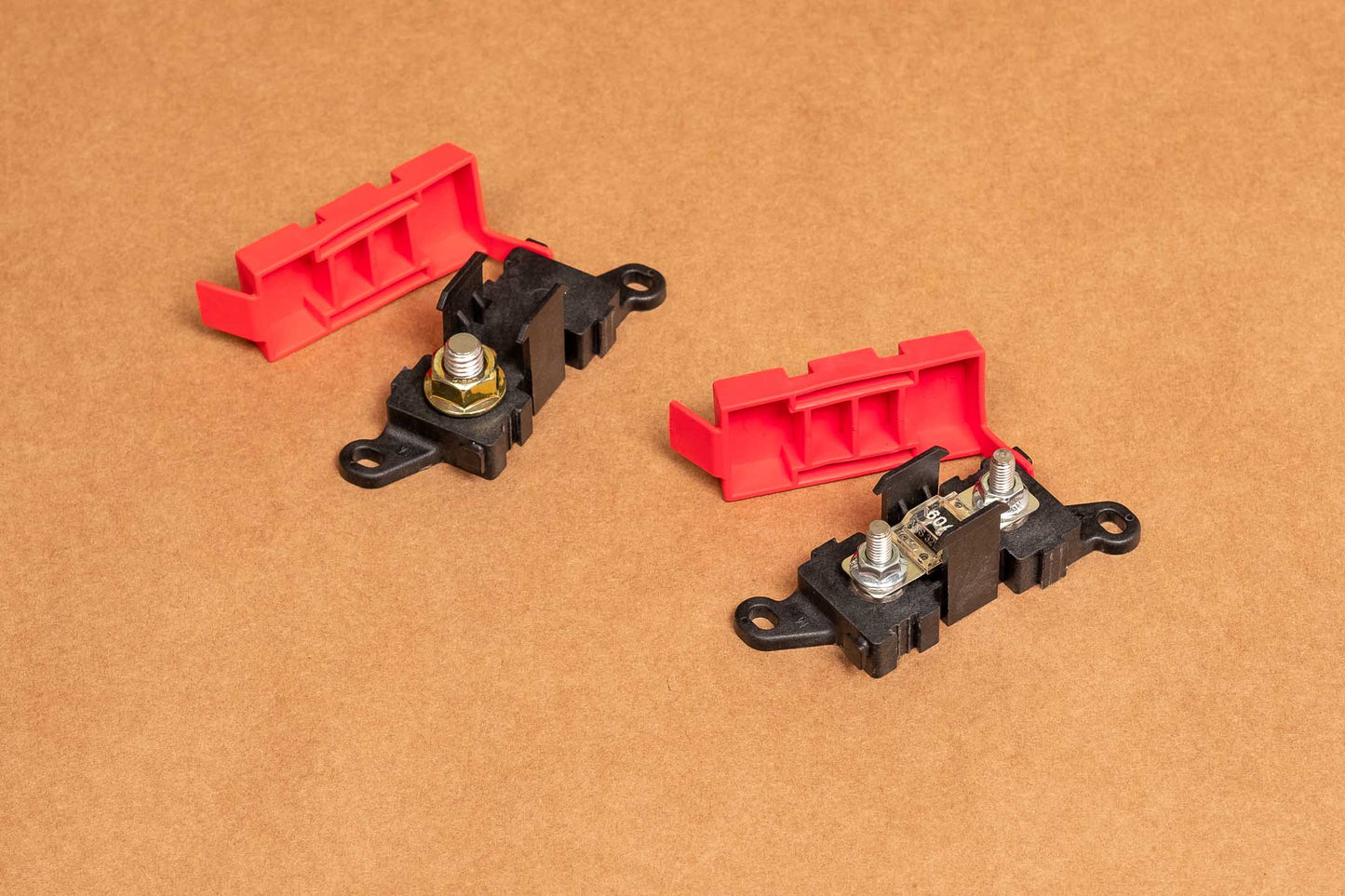

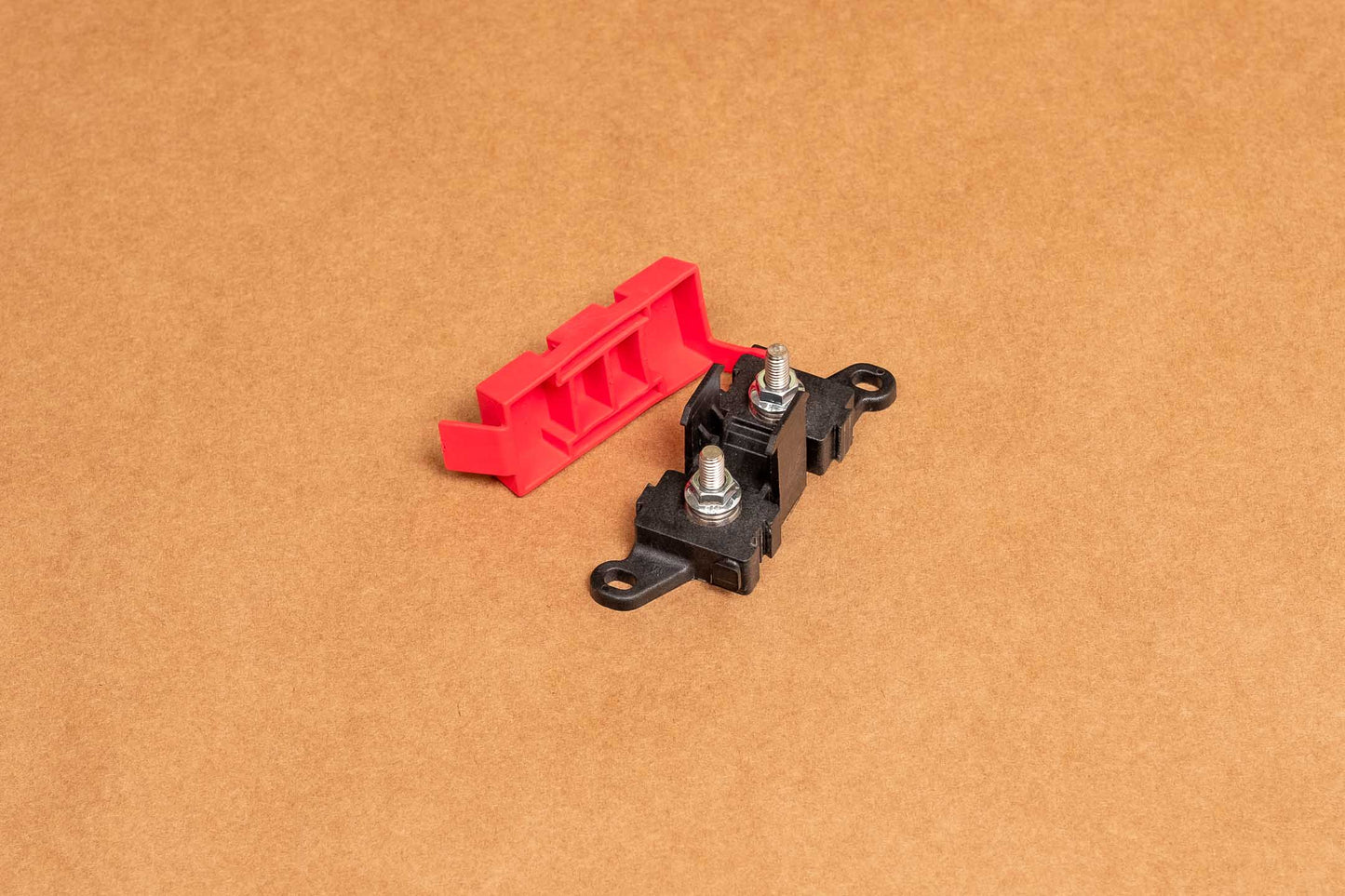

What's included: - 1x Input module - part no. LMIIM) - MIDI fuse modules - part no. LMIFM - 1x 2, 3, 4 or 5 position busbar - Bonus SS hardware kit
